في هذا الدرس سنتعلم كيف نوثق document الـ API التي قمنا بتطويرها، وبدلاً من كتابتها يدوياً سنستخدم مكتبة Swashbuckle لمساعدتنا في ذلك.

إعداد المشروع

إضافة المكتبة البرمجية

dotnet add package Swashbuckle.AspNetCore

إنشاء classes للإعدادات

إنشئ مجلد جديد بإسم Swagger وبداخله ملف بإسم ConfigureSwaggerOptions.cs محتواه في الأساس من الصفحة التالية:

ConfigureSwaggerOptions.cs

وبعد القيام بالتعديلات المناسبة يكون محتوى الملف:

using Microsoft.AspNetCore.Mvc.ApiExplorer;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Options;
using Microsoft.OpenApi.Models;
using Swashbuckle.AspNetCore.SwaggerGen;
using System;

namespace aspnetcorewebapiproject.Swagger
{
    // From: https://github.com/microsoft/aspnet-api-versioning/blob/master/samples/aspnetcore/SwaggerSample/ConfigureSwaggerOptions.cs

    /// <summary>
    /// Configures the Swagger generation options.
    /// </summary>
    /// <remarks>This allows API versioning to define a Swagger document per API version after the
    /// <see cref="IApiVersionDescriptionProvider"/> service has been resolved from the service container.</remarks>
    public class ConfigureSwaggerOptions : IConfigureOptions<SwaggerGenOptions>
    {
        readonly IApiVersionDescriptionProvider provider;

        /// <summary>
        /// Initializes a new instance of the <see cref="ConfigureSwaggerOptions"/> class.
        /// </summary>
        /// <param name="provider">The <see cref="IApiVersionDescriptionProvider">provider</see> used to generate Swagger documents.</param>
        public ConfigureSwaggerOptions( IApiVersionDescriptionProvider provider ) => this.provider = provider;

        /// <inheritdoc />
        public void Configure( SwaggerGenOptions options )
        {
            // add a swagger document for each discovered API version
            // note: you might choose to skip or document deprecated API versions differently
            foreach ( var description in provider.ApiVersionDescriptions )
            {
                options.SwaggerDoc( description.GroupName, CreateInfoForApiVersion( description ) );
            }
        }

        static OpenApiInfo CreateInfoForApiVersion( ApiVersionDescription description )
        {
            var info = new OpenApiInfo()
            {
                Title = "Employees API",
                Version = description.ApiVersion.ToString(),
                Description = "A sample ASP.NET Core Web API project",
                Contact = new OpenApiContact() { Name = "The API Dev Company", Email = "email@email.com" },
                // License = new OpenApiLicense() { Name = "MIT", Url = new Uri( "https://opensource.org/licenses/MIT" ) }
            };

            if ( description.IsDeprecated )
            {
                info.Description += " This API version has been deprecated.";
            }

            return info;
        }
    }
}

بعد ذلك نضيف الملف SwaggerDefaultValues.cs والذي يمكن إيجاده في الرابط التالي:

SwaggerDefaultValues.cs

using Microsoft.AspNetCore.Mvc.ApiExplorer;
using Microsoft.OpenApi.Any;
using Microsoft.OpenApi.Models;
using Swashbuckle.AspNetCore.SwaggerGen;
using System.Linq;

namespace aspnetcorewebapiproject.Swagger
{
    // From: https://github.com/microsoft/aspnet-api-versioning/blob/master/samples/aspnetcore/SwaggerSample/SwaggerDefaultValues.cs

    /// <summary>
    /// Represents the Swagger/Swashbuckle operation filter used to document the implicit API version parameter.
    /// </summary>
    /// <remarks>This <see cref="IOperationFilter"/> is only required due to bugs in the <see cref="SwaggerGenerator"/>.
    /// Once they are fixed and published, this class can be removed.</remarks>
    public class SwaggerDefaultValues : IOperationFilter
    {
        /// <summary>
        /// Applies the filter to the specified operation using the given context.
        /// </summary>
        /// <param name="operation">The operation to apply the filter to.</param>
        /// <param name="context">The current operation filter context.</param>
        public void Apply( OpenApiOperation operation, OperationFilterContext context )
        {
            var apiDescription = context.ApiDescription;

            operation.Deprecated |= apiDescription.IsDeprecated();

            if ( operation.Parameters == null )
            {
                return;
            }

            // REF: https://github.com/domaindrivendev/Swashbuckle.AspNetCore/issues/412
            // REF: https://github.com/domaindrivendev/Swashbuckle.AspNetCore/pull/413
            foreach ( var parameter in operation.Parameters )
            {
                var description = apiDescription.ParameterDescriptions.First( p => p.Name == parameter.Name );

                if ( parameter.Description == null )
                {
                    parameter.Description = description.ModelMetadata?.Description;
                }

                if ( parameter.Schema.Default == null && description.DefaultValue != null )
                {
                    parameter.Schema.Default = new OpenApiString( description.DefaultValue.ToString() );
                }

                parameter.Required |= description.IsRequired;
            }
        }
    }
}

التعديل على ConfigureServices في Startup.cs

نقوم بالإضافات التالية في نهاية الدالة:

public void ConfigureServices(IServiceCollection services)
{
	...

	services.AddApiVersioning(o => {
		o.DefaultApiVersion = new ApiVersion(1, 0);
		o.AssumeDefaultVersionWhenUnspecified = true;
		// reporting api versions will return the headers "api-supported-versions" and "api-deprecated-versions"
		o.ReportApiVersions = true;
	});

	services.AddVersionedApiExplorer(o => {
		// add the versioned api explorer, which also adds IApiVersionDescriptionProvider service
		// note: the specified format code will format the version as "'v'major[.minor][-status]"
		o.GroupNameFormat = "'v'VVV";

		// note: this option is only necessary when versioning by url segment. the SubstitutionFormat
		// can also be used to control the format of the API version in route templates
		o.SubstituteApiVersionInUrl = true;
	});

	services.AddTransient<IConfigureOptions<SwaggerGenOptions>, ConfigureSwaggerOptions>();

	// Register the Swagger generator, defining 1 or more Swagger documents
	services.AddSwaggerGen(o =>
	{
		// add a custom operation filter which sets default values
		o.OperationFilter<SwaggerDefaultValues>();

		o.ResolveConflictingActions( apiDescriptions => apiDescriptions.First() );

		// Set the comments path for the Swagger JSON and UI.
		var xmlFile = $"{Assembly.GetExecutingAssembly().GetName().Name}.xml";
		var xmlPath = Path.Combine(AppContext.BaseDirectory, xmlFile);
		o.IncludeXmlComments(xmlPath);
	});
}

ولا ننسى إضافة الـ namespaces التالية:

using Microsoft.Extensions.Options;
using Swashbuckle.AspNetCore.SwaggerGen;
using aspnetcorewebapiproject.Swagger;
using System.Reflection;
using System.IO;

التعديل على ملف csproj

لتمكين الـ xml comments نضيف الأسطر التالية لملف الـ csproj:

<PropertyGroup>
  <GenerateDocumentationFile>true</GenerateDocumentationFile>
  <NoWarn>$(NoWarn);1591</NoWarn>
</PropertyGroup>

التعديل على Configure في Startup.cs

نضيف أولاً الـ namespace التالي:

using Microsoft.AspNetCore.Mvc.ApiExplorer;

ثم نمرر argument من نوع IApiVersionDescriptionProvider للدالة ()Configure:

public void Configure(..., IApiVersionDescriptionProvider provider)
{
	...
}

والتعديل الأخير سيكون في نهاية الدالة حيث نقوم بإضافة ما يلي:

public void Configure(IApplicationBuilder app, IWebHostEnvironment env, ILogger<Startup> logger, IApiVersionDescriptionProvider provider)
{
	...

	// Enable middleware to serve generated Swagger as a JSON endpoint.
	app.UseSwagger();

	// Enable middleware to serve swagger-ui (HTML, JS, CSS, etc.),
	// specifying the Swagger JSON endpoint.
	app.UseSwaggerUI(c =>
	{
		c.RoutePrefix = string.Empty;

		// build a swagger endpoint for each discovered API version
		foreach ( var description in provider.ApiVersionDescriptions )
		{
			c.SwaggerEndpoint( $"/swagger/{description.GroupName}/swagger.json", description.GroupName.ToUpperInvariant() );
		}
	});
}

إضافة وصف للـ EmployeeController

سنكتب وصف لجميع العمليات ومدخلاتها ومخرجتها ليتم عرضها في واجهة Swagger بإتباع التعديلات التالية:

إضافة وصف للـ EmployeesController class

/// <summary>
/// Contains CRUD operations on the Employee entity
/// </summary>
[ApiVersion("1.0")]
[ApiVersion("1.1")]
[Route("api/v{version:apiVersion}/[controller]")]
[EnableCors("CorsPolicy")]
[ApiController]

public class EmployeesController : ControllerBase
{
	...
}

إضافة وصف لـ GetVersion

/// <summary>
/// Retrieve controller version
/// </summary>
/// <returns>The controller version</returns>
/// <response code="200">Returns the controller version</response>

[HttpGet("version")]
[ProducesResponseType(typeof(string), StatusCodes.Status200OK)]

public string GetVersion() => HttpContext.GetRequestedApiVersion().ToString();

إضافة وصف لـ GetEmployees

/// <summary>
/// Retrieve all Employee items
/// </summary>
/// <param name="employeeGetDto">Ordering and paging criteria</param>
/// <returns>A list of Employee items</returns>
/// <response code="200">Returns the items</response>

// GET: api/Employees
[HttpGet]
[ProducesResponseType(typeof(EmployeesResponse<PaginatedList<EmployeeDetailsDto>>), StatusCodes.Status200OK)]

public async Task<ActionResult<EmployeesResponse<PaginatedList<EmployeeDetailsDto>>>> GetEmployees([FromQuery] EmployeeGetDto employeeGetDto)
{
	...
}

إضافة وصف لـ GetEmployee

/// <summary>
/// Retrieve a specific Employee item
/// </summary>
/// <param name="id">Id of item to retrieve</param>
/// <returns>An Employee item</returns>
/// <response code="200">Returns the item</response>
/// <response code="404">If the item is not found</response>

// GET: api/Employees/5
[HttpGet("{id}")]
[ProducesResponseType(typeof(EmployeesResponse<EmployeeDetailsDto>), StatusCodes.Status200OK)]
[ProducesResponseType(StatusCodes.Status404NotFound)]

public async Task<ActionResult<EmployeesResponse<EmployeeDetailsDto>>> GetEmployee(int id)
{
	...
}

إضافة وصف لـ GetEmployeeV1_1

/// <summary>
/// Retrieve a specific Employee item
/// </summary>
/// <param name="id">Id of item to retrieve</param>
/// <returns>An Employee item</returns>
/// <response code="200">Returns the item</response>
/// <response code="404">If the item is not found</response>

// GET: api/Employees/5
[HttpGet("{id}")]
[MapToApiVersion("1.1")]
[ProducesResponseType(typeof(EmployeesResponse<EmployeeDetailsDto>), StatusCodes.Status200OK)]
[ProducesResponseType(StatusCodes.Status404NotFound)]

public async Task<ActionResult<EmployeesResponse<EmployeeDetailsDto>>> GetEmployeeV1_1(int id)
{
	...
}

إضافة وصف لـ PostEmployee

/// <summary>
/// Creates an Employee item
/// </summary>
/// <param name="employeeInsertDto">Employee info to create</param>
/// <returns>A newly created Employee item</returns>
/// <response code="201">Returns the newly created item</response>
/// <response code="400">If the item is null</response>

// POST: api/Employees
[HttpPost]
[ProducesResponseType(typeof(EmployeesResponse<EmployeeDetailsDto>), StatusCodes.Status201Created)]
[ProducesResponseType(StatusCodes.Status400BadRequest)]

public async Task<ActionResult<EmployeesResponse<EmployeeDetailsDto>>> PostEmployee(EmployeeInsertDto employeeInsertDto)
{
	...
}

إضافة وصف لـ PutEmployee

/// <summary>
/// Update an Employee item
/// </summary>
/// <param name="id">Id of item to update</param>
/// <param name="employeeUpdateDto">Employee info to update</param>
/// <returns>An updated Employee item</returns>
/// <response code="200">Returns the newly updated item</response>
/// <response code="400">If the inputs are invalid</response>
/// <response code="404">If the item is not found</response>

// PUT: api/Employees/5
[HttpPut("{id}")]
[ProducesResponseType(typeof(EmployeesResponse<EmployeeDetailsDto>), StatusCodes.Status200OK)]
[ProducesResponseType(StatusCodes.Status400BadRequest)]
[ProducesResponseType(StatusCodes.Status404NotFound)]

public async Task<ActionResult<EmployeesResponse<EmployeeDetailsDto>>> PutEmployee(int id, EmployeeUpdateDto employeeUpdateDto)
{
	...
}

إضافة وصف لـ DeleteEmployee

/// <summary>
/// Deletes a specific Employee item
/// </summary>
/// <param name="id">Id of item to delete</param>
/// <response code="200">Returns the deleted item</response>
/// <response code="404">If the item is not found</response>

// DELETE: api/Employees/5
[HttpDelete("{id}")]
[ProducesResponseType(typeof(EmployeesResponse<EmployeeDetailsDto>), StatusCodes.Status200OK)]
[ProducesResponseType(StatusCodes.Status404NotFound)]

public async Task<ActionResult<EmployeesResponse<EmployeeDetailsDto>>> DeleteEmployee(int id)
{
	...
}

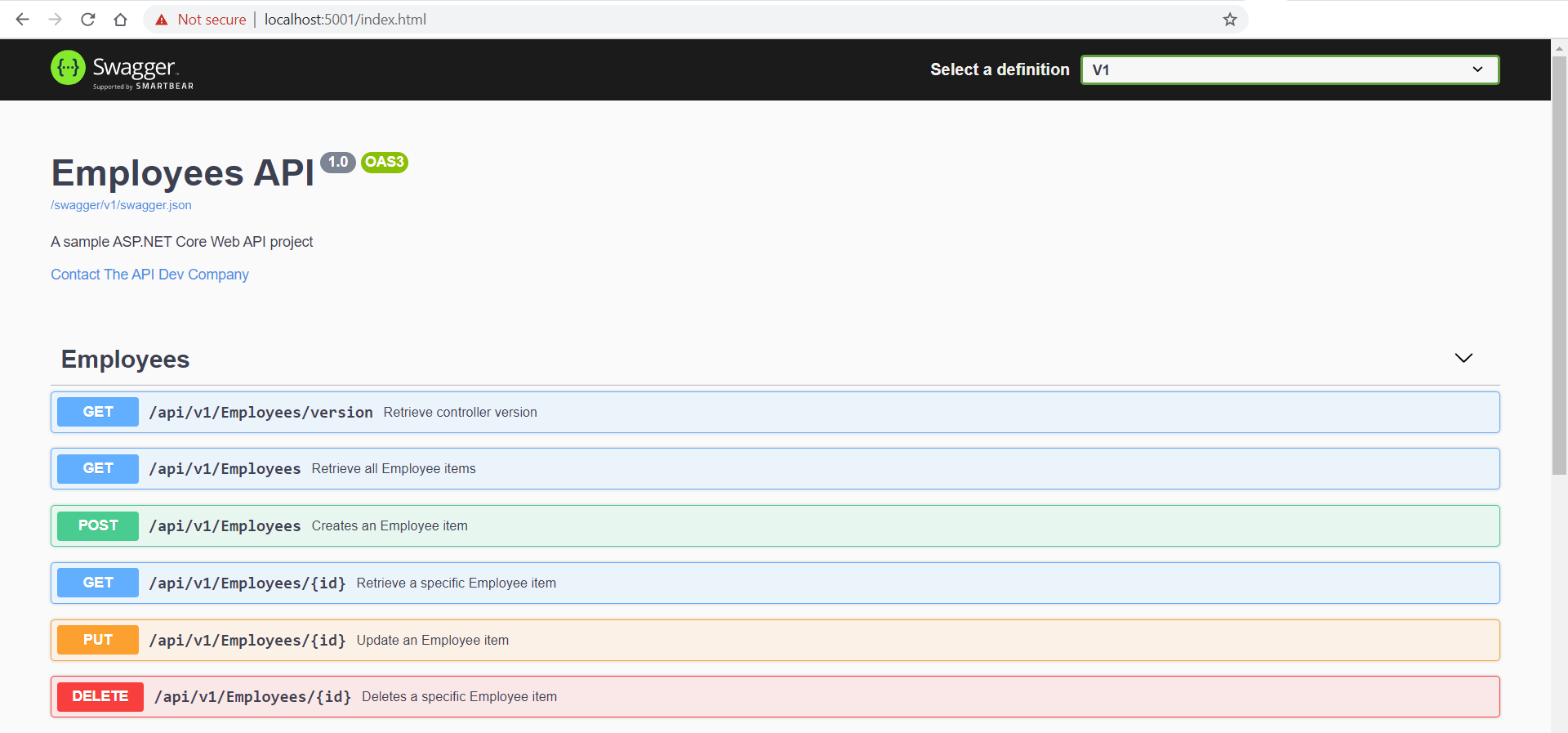

إستعراض الـ Swagger Documentation

بإمكانك إستعراض المستند الذي تم إنشاؤه على الرابط التالي:

https://localhost:5001

سترى جميع الـ controllers بعملياتها ونسخها المختلفة:

---
